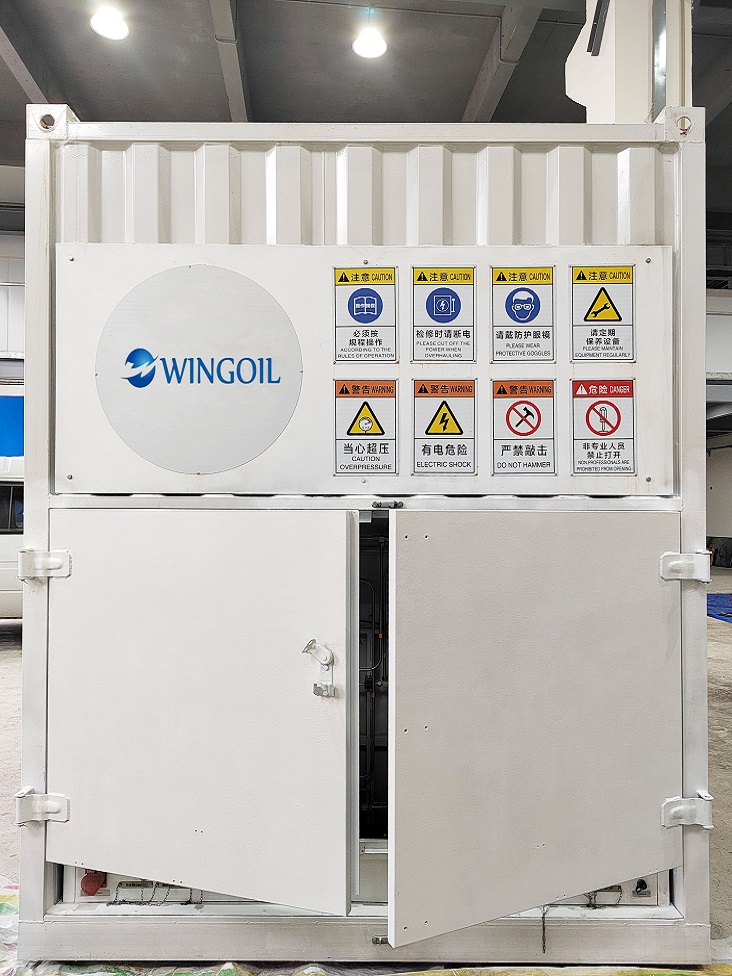

WY-24000W-TJ1 pressure test room has been assembled and will be shipped to Nigeria

A pressure test room is a set of pressure test equipment with pressure test record and monitoring, designed and developed according to the specific use requirements of customers, pressure test bay control room mainly includes a pressure test device and PLC computer recording equipment, and it has the function of real-time record and step-less pressure regulation.

The equipment provided mainly includes two parts: pressure test equipment and PLC computer record. The pressure test equipment is used to make the booster pump run and output the service pressure and flow rate required by the site through the relevant operation of the control panel.

Parameter

• Ambient temperature: 0 to 40℃
• Driven air supply: 1-8bar, 3000L/min

• Testing medium: Clean water, compressed air, or nitrogen
• Max. output pressure: 20000psi
• Max. water flow rate: 20L/min
• Max. gas flow rate: 70LN/min
• Max. air pressure: 10 bar
• Connector
  • Compressed air inlet: 1/2 NPT
  • High-pressure outlet: G1/4-60°
  • Water outlet: G1/2
  • HP air/Nitrogen inlet: 1/2NPT
  • Bleed off: G1/2
• Dimension (mm): 3000L*2200W*2600H
