WY-1000N-BJ0 Portable Gas Booster System
- Model: WY-1000N-BJ0
- The system consists of a gas booster pump and a control panel, all housed in a durable, weather-resistant enclosure. The gas booster pump is the heart of the system, capable of delivering high-pressure gas flows up to 15,000 psi (1000 bar).
Share to
Overview
WY-1000N-BJ0 Portable Gas Booster System is a kind of pressure test equipment developed and produced by Wingoil to meet the injection of different media such as Nitrogen and CO2 media. It has a compact structure, and the overall no-load design weight is about 82kg. The equipped pumps, valves, and pipelines are made of stainless steel, which can withstand the harsh working conditions of high temperatures and high pressure. The equipment uses compressed air as the power source, with low energy consumption. This equipment is suitable for Nitrogen and pressure tests of various pressure vessels, pipelines, and valves.
WY-1000N-BJ0 is customized according to the requirements of customers. It is mainly used for the pressurization equipment of Nitrogen pressurization. The theoretical maximum service pressure of the equipment is 15000 psi / 1000 bar.
Characteristics
- Low-pressure compressed air is used as the booster power source, which is convenient, safe, and environmentally friendly.
- The equipment adopts a portable structure, with lightweight and convenient transportation and movement.
- Use low-pressure compressed air as driven power to keep convenience and safety.
- With the function of pressure self-locked to adjust output pressure remains constant in case of overshoot under air-driven pressure setting constant.
- Pressure is displayed by a double-scale vibration-proof pressure gauge.
Model: WY-1000N-BJ0
Testing medium | Nitrogen |
Max. output pressure | 1000 bar / 15000 psi |
Max. flow rate | 297 LN/min@100psi inlet pressure |
Max. driven-air operating pressure | 10 bar / 145 Psi |
Compressed air inlet | 3/8″NPT(F) |
High-pressure outlet | HF4 |
LP inlet | 1/4″NPT(F) |
Dimension | 900L*500W*600H mm |
Valve-rated pressure | 1400 bar / 20000 psi |

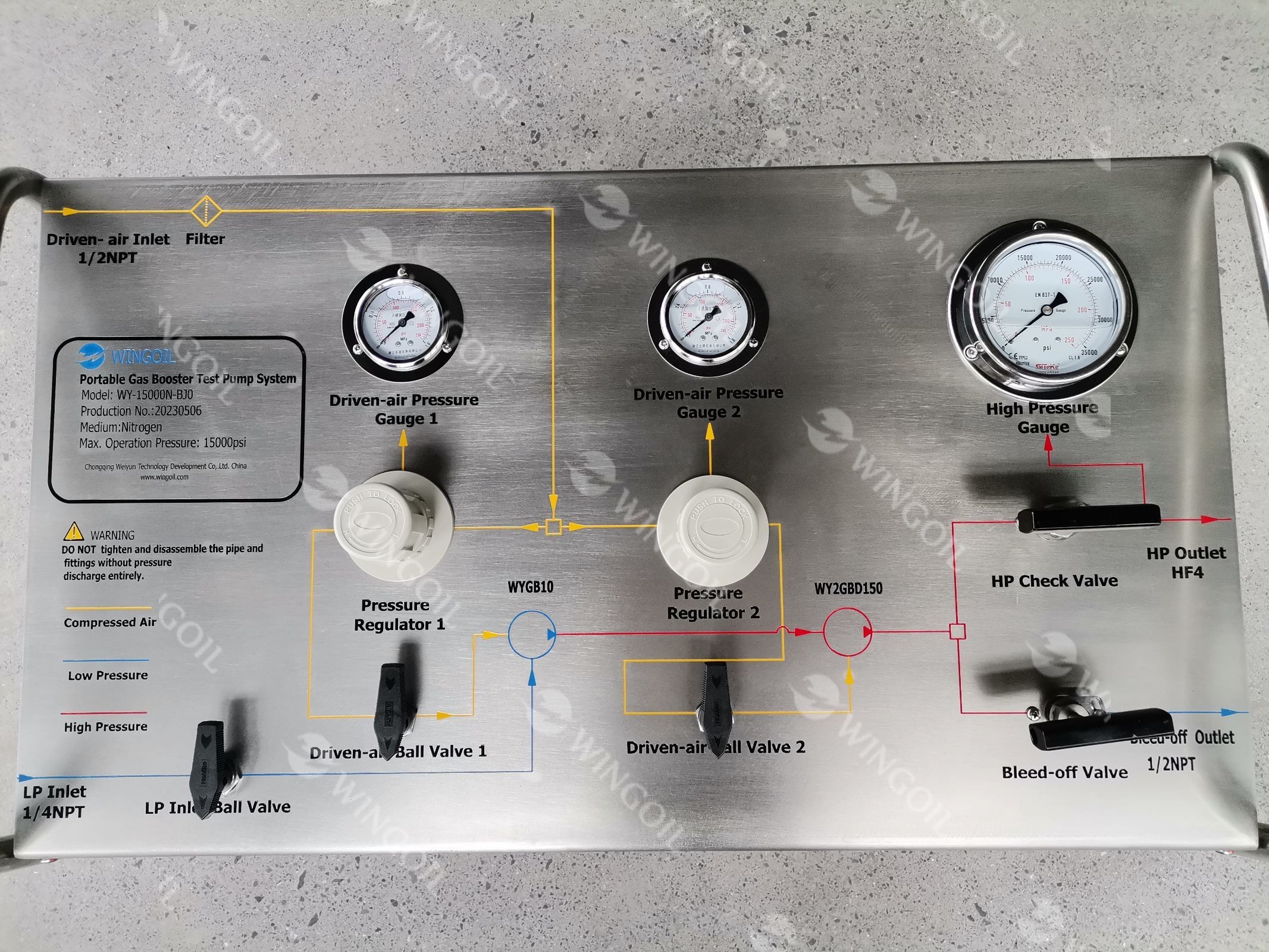

Note: Connection and the operating panel flow chart correspond to the position indicated by the arrow.
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
