Timely Delivery of Advanced Gas Booster Devices for Industries

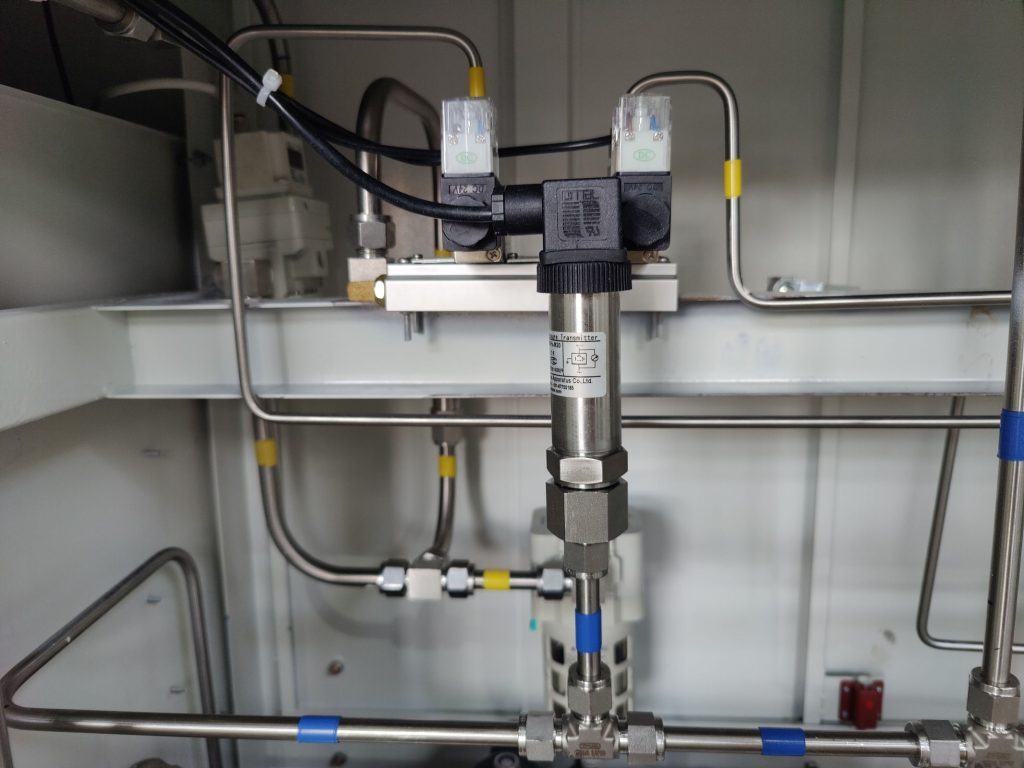

Wingoil’s gas booster device is an automatic equipment used to boost the nitrogen pressure from 5MPa to 200MPa, which is mainly composed of two parts: the control console and the booster cabinet. The operation part of the equipment is integrated on the control console, and user can complete all pressure testing operations on the control console after connecting the test workpiece. The gas booster pump and control components are integrated in the booster cabinet, and its panel is equipped with pressure gauges for driving gas, inlet nitrogen, and outlet nitrogen to display the gas pressure in the pipeline of the system.
Parameters
- Ambient air temperature: 0 to 60℃
- Driving air: 0.1 to 0.8MPa
- Medium: 3Mpa nitrogen
- Max. working pressure of the equipment: 200MPa
- Max. driving air pressure: 0.8MPa
- Equipment interface:
- Driving air inlet: G1/2”
- Gas medium inlet: G3/8”
- Low pressure gas outlet: G3/8”
- High pressure gas outlet: HF4”
- Rated operating pressure of the valve: 205MPa
