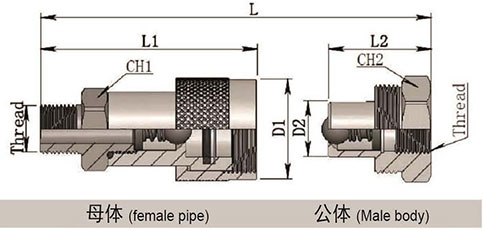

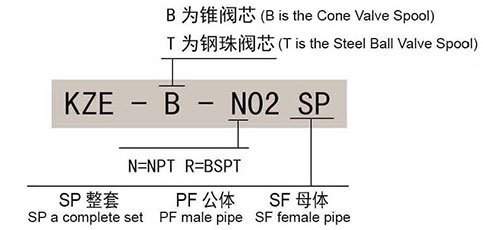

| Model | Thread | L | L1 | L2 | D1 | D2 | CH1 | CH2 | Steel ball | Valve spool |
| KZB-B-N02SP | NPT1/4 | 80 | 60.5 | 32 | 29 | 15.8 | 22 | 19 | √ | √ |
| KZB-B-R02SP | R1/4 | 80 | 60.5 | 32 | 29 | 15.8 | 22 | 19 | √ | √ |
| KZB-B-N03SP | NPT3/8 | 85 | 72 | 38 | 35 | 19 | 24 | 32 | √ | √ |
| KZB-B-R03SP | R8 | 85 | 72 | 38 | 35 | 19 | 24 | 32 | √ | √ |
| Gauge (inch) | 44565 | 44628 |
| Rated pressure (MPa) | 70 | 70 |

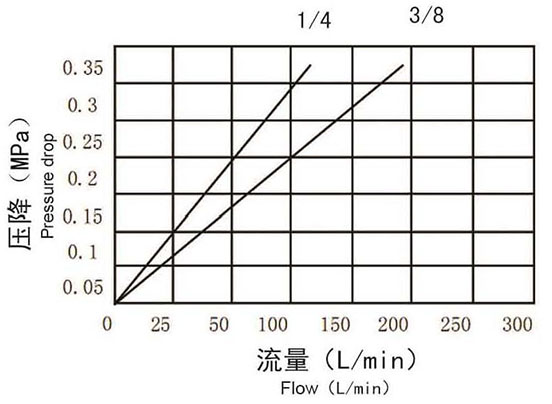

| Rated flow rate (L/min) | 15 | 20 |
| Temperature range | -20℃ to 80℃ |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
