Relief Valves

  • Standard material: 316
  • Operating pressure range: 50 to 10,000psi
  • Standard seal material: NBR, PTFE packing and nylon seat, inlet connection 1/4″NPT, outlet 1/4″NPT, easy to adjust in the field

Share to

Overview

All needle valves record the reliability of the serial number. Provide complete traceability of all pressure retaining parts.

Wingoil needle valve provides maximum safety and reliability. Even under adverse operating conditions, the valve can be installed in any direction and can effectively seal gas and liquid media.

The valve needle and valve stem are non-rotating. Therefore, the service life and reliability of the valve are increased. Pressure parts are made of high-quality corrosion-resistant stainless steel.

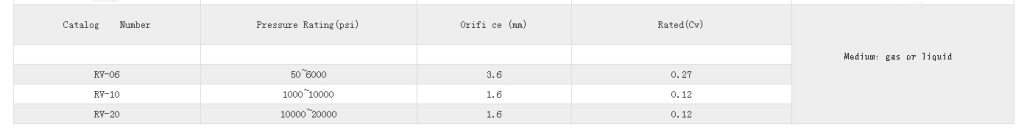

Parameter

Medium: Gas or liquid

Catalog No.Pressure Rating (psi)Orifice (mm)Rated (CV)
RV-0650 to 6,0003.60.27
RV-101,000 to 10,0001.60.12
RV-2010,000 to 20,0001.60.12

Structure

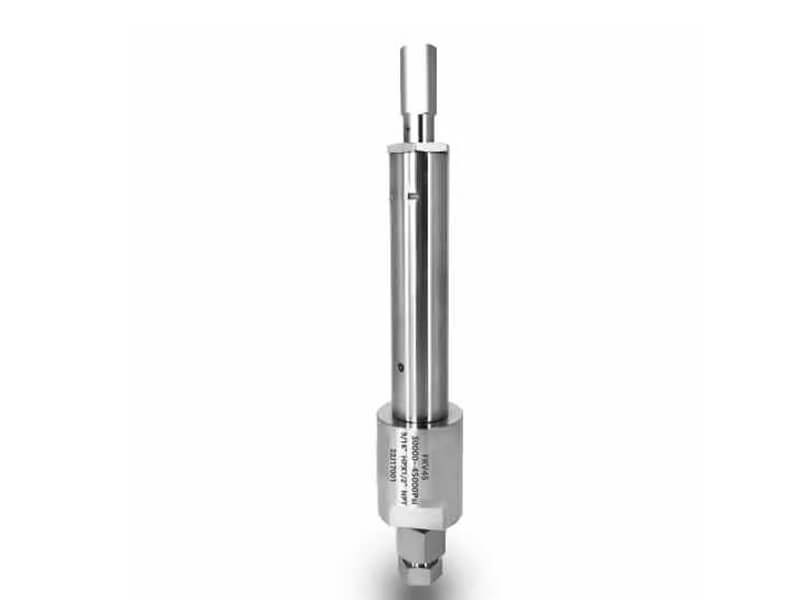

Relief Valves RV-06

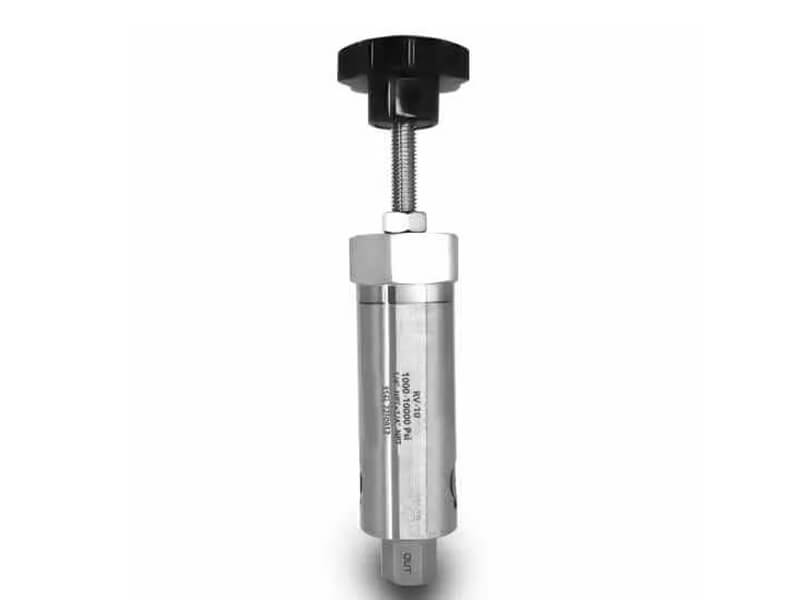

Relief Valves RV-10

————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
