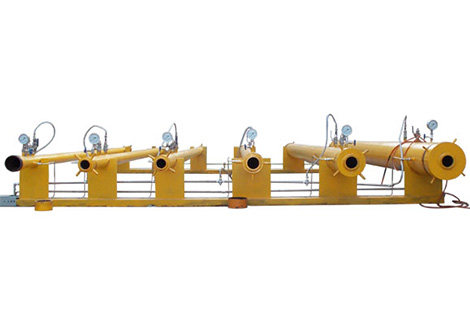

Pressure Calibration Device
- Model: WY-80W-GJ0
- This is a specialized instrument designed to verify the accuracy and precision of pressure sensors, transmitters, and gauges. Its primary purpose is to ensure that these devices provide reliable and consistent readings, which are essential in various industrial, scientific, and research applications.
Share to
Overview
The pressure scale device is to place the special instrument in the ground casing, and simulate the formation conditions of the special instrument under certain pressure and temperature, thereby verifying the performance of the instrument and marking.
Features
- Can test multiple instruments at the same time.
- All modules are centrally laid out for easy production and safety management.
- The equipment adopts a modular design, compact structure and convenient transportation.
- Using a gas-driven pump, it can output a stable pressure without additional energy consumption during the pressure-holding process.
Model: WY-80W-GJ0

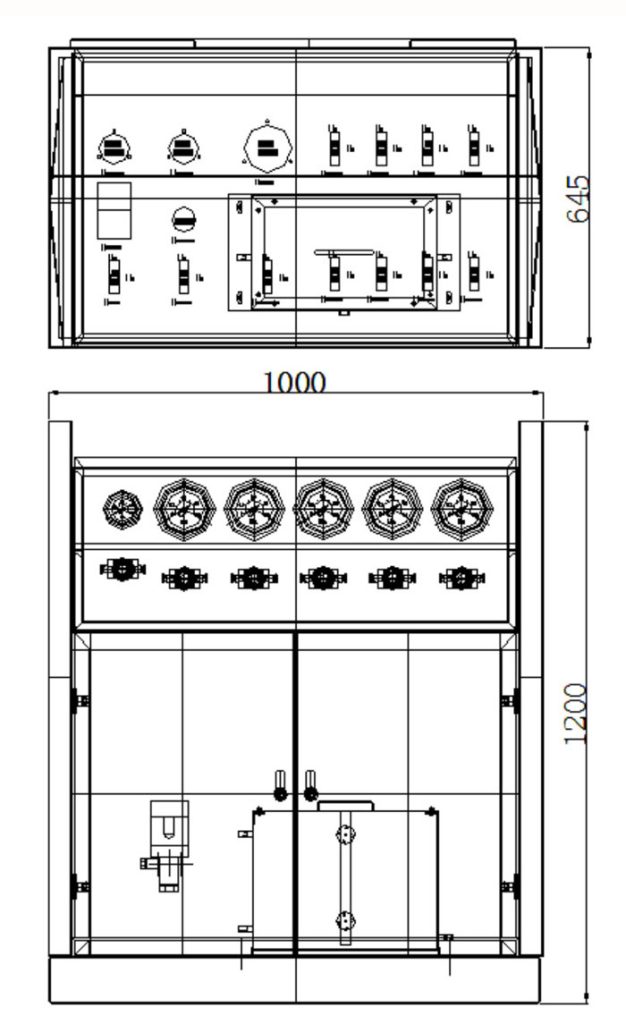

| Size | 1200L*750W*1200L |
| Max. flow rate | 3.2 L/min |
| Max. output pressure | 80 bar / 8 Mpa |
| Safety valve pressure | 100 bar / 10 Mpa |
| Max. operating pressure of needle valve | 206 bar / 20.6 Mpa |
| Pressure gauge range | 160 bar / 16 Mpa |
Connection
| Low-pressure water inlet | G3/4F (6-point female thread) |
| Exhaust outlet | G3/4F (6-point female thread) |
| Sewage outlet | G3/4F (6-point female thread) |
| Water inlet | G3/4F (6-point female thread) |
| High-pressure outlet | G1/4 |
Construction
| Frame | Stainless Steel |
| Water tank | Stainless Steel |
| Pressure gauge | Stainless Steel |
| Valve | Stainless Steel |
| Tube | Stainless Steel |
| Connections | Stainless Steel |
| Hydraulic Cylinder | Anodized aluminum |
| Piston | Stainless Steel |
| Booster pump head | Stainless Steel |
| Cabinet | Stainless Steel |
Hydraulic Pressure Static Conditions (@7bar）
| Air Pressure (bar) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Hydraulic Pressure (bar) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 |
| Output flow rate (theoretical) | 0 | 3.2 | 3 | 2.7 | 2.4 | 2 | 1.5 | 1 |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
