Overview
WY-800W-J0A Portable Hydro Test Pump is a kind of pneumatic hydrostatic testing pump designed and developed according to specific requirements and methods from customers. The equipment is a pneumatic hydro testing pump. Compressed air is used as the power source to drive the plunger pump to operate, which can provide relatively stable pressure and flow rate. Meanwhile, it does not need additional energy consumption in the process of pressure holding, and there is no over pressure in the pressurization process.
Characteristics
- Safe use, using 316SS as the main pressure component.
- Anti-corrosion is strong, the wet parts and panel are made of stainless steel.
- Low energy consumption, packing process does not require additional energy consumption.
- Pressurized stable and reliable, equipment selecting an air drive pump, can quickly complete the pressurized operation.

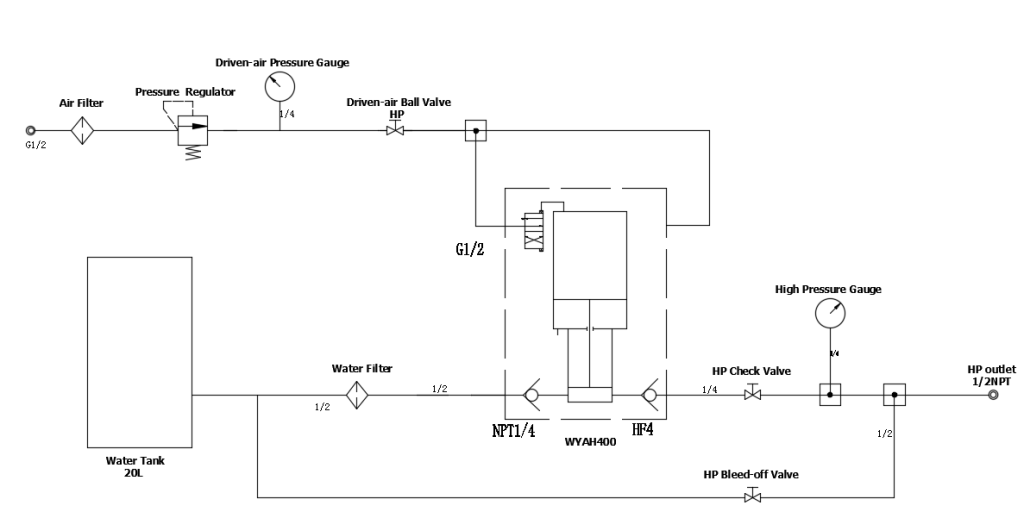

- In simple operation, the user can quickly become familiar with the operation methods and mechanisms through the schematic diagram and instructions.

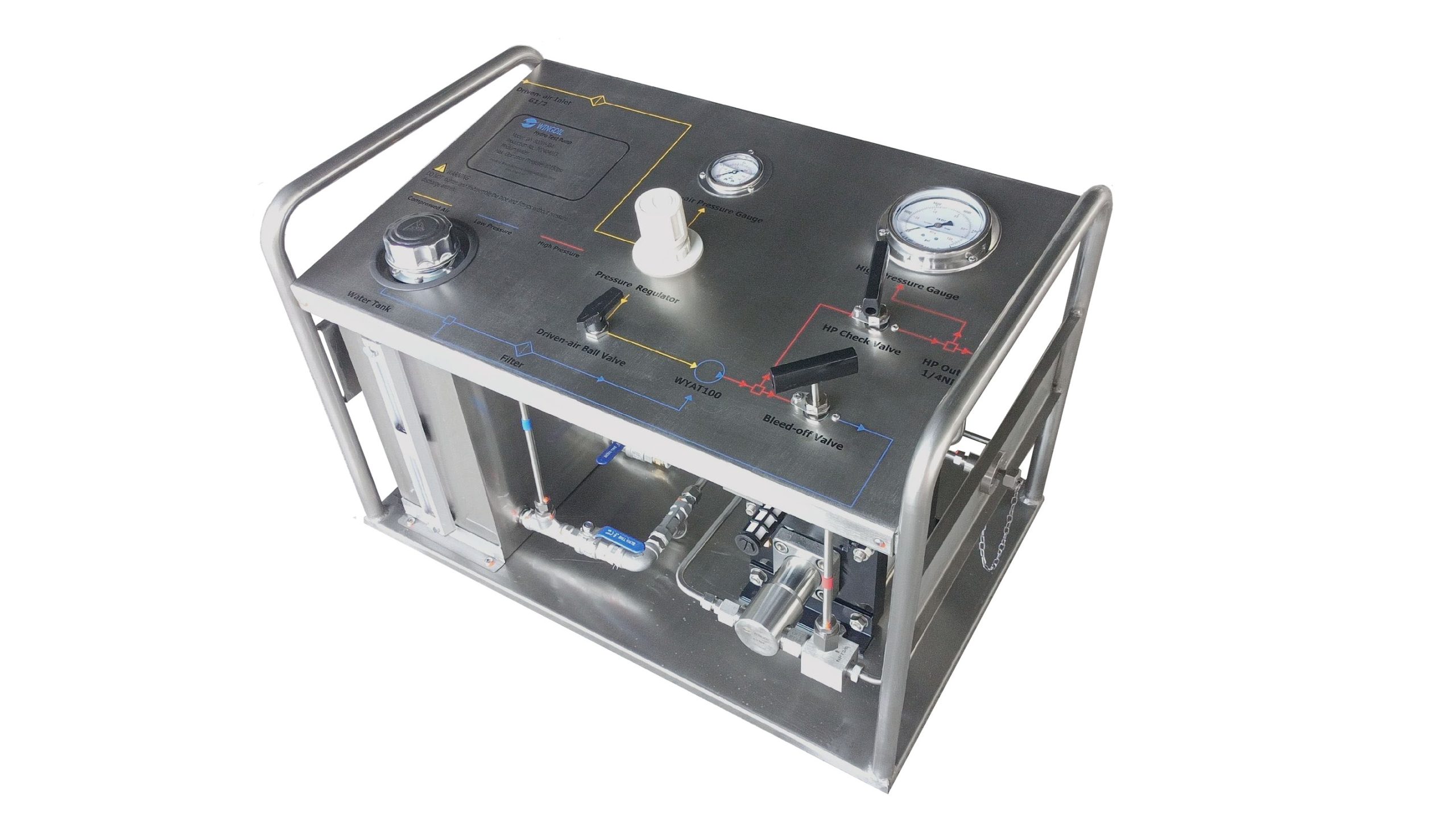

Model: WY-800W-J0A

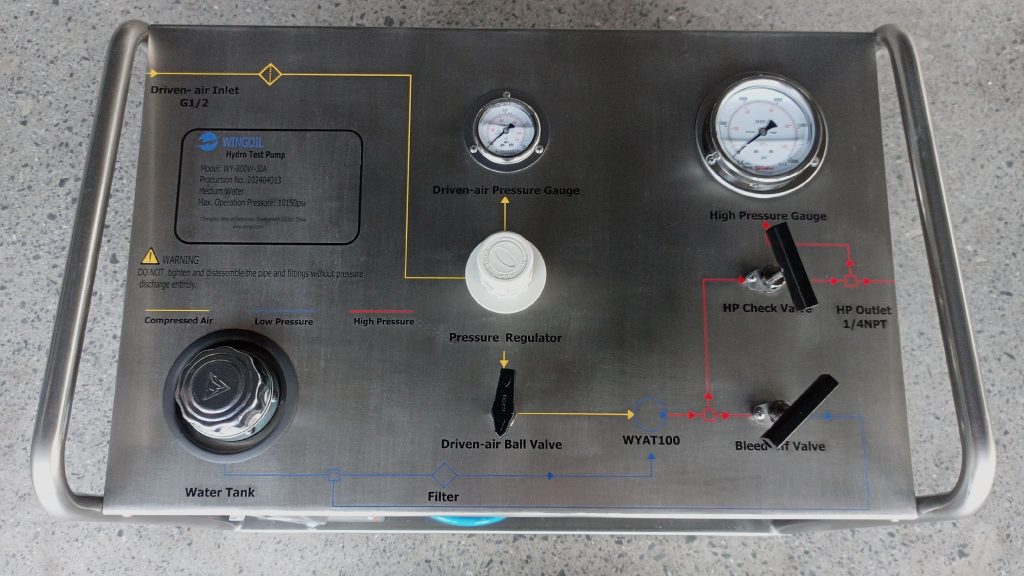

Note: The connection and the operating panel flow chart are corresponding to the position indicated by the arrow.
Model: WY-800W-J0A
| Ambient temperature | 0 to 60℃ |
| Driven air supply | 3 to 8 bar |
| Testing medium | Clean water |
| Max. output pressure | 830 bar / 12,000 psi |
| Max. flow rate | 3.62 L/min |
| Max.driven-air operating pressure | 8.3 bar / 120 psi |
| Pipeline operating pressure | 130 bar / 1885 psi |
| Compressed air inlet | 1/2″ NPT(F) |
| High-pressure outlet | 1/4” NPT(F) |
| High-pressure outlet quantity | 1 PC |
| Water tank volume | 15L |
| Dimension | 800L*500W*550H (mm) |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
