Pneumatic Pressure Test Bench with PC Recorder and Liquid Storage Tank
- Model: WY-700W-J2
- This advanced test bench is equipped with a PC-based recorder, which enables the accurate measurement and recording of pressure, flow rate, and temperature data. The system’s data acquisition software enables the recording and analysis of test data, including pressure, flow rate, and temperature profiles.
Share to
Overview

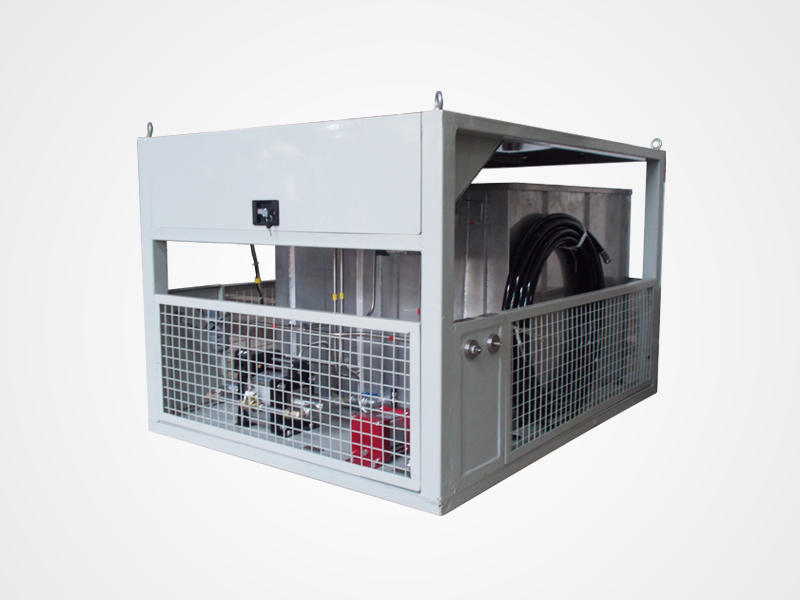

This is a pressure test device with a liquid storage tank and electronic recording. It uses compressed air as a power source, is equipped with a 1000L liquid storage tank, quickly pressurizes the test medium, and can display, print and save the pressure curve.
Features
- Stainless steel material withstanding harsh conditions.
- The electrical component interfaces are placed in the explosion-proof box.
- Flow chart of boosting etched on the control panel surface of the booster unit.
- Equipped with a large-capacity liquid storage tank, which can carry the media for on-site operation.
- With digital remote recording, real-time data display monitoring, issuing experimental reports, historical data check functions.

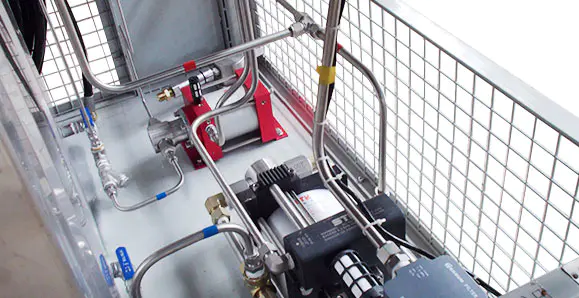

- Adopts air-driven hydro pump as the boosting unit, which have pressure self-locking function and effectively avoid overpressure.
- The uniquely designed rope-retractor structure enables the coiling of the pipeline to be more regular and at the same time preliminary cleaning.
- The large-displacement low-pressure pump and the small-displacement high-pressure pump are configured to achieve functional control of different pressures, flow rate, and compression times.

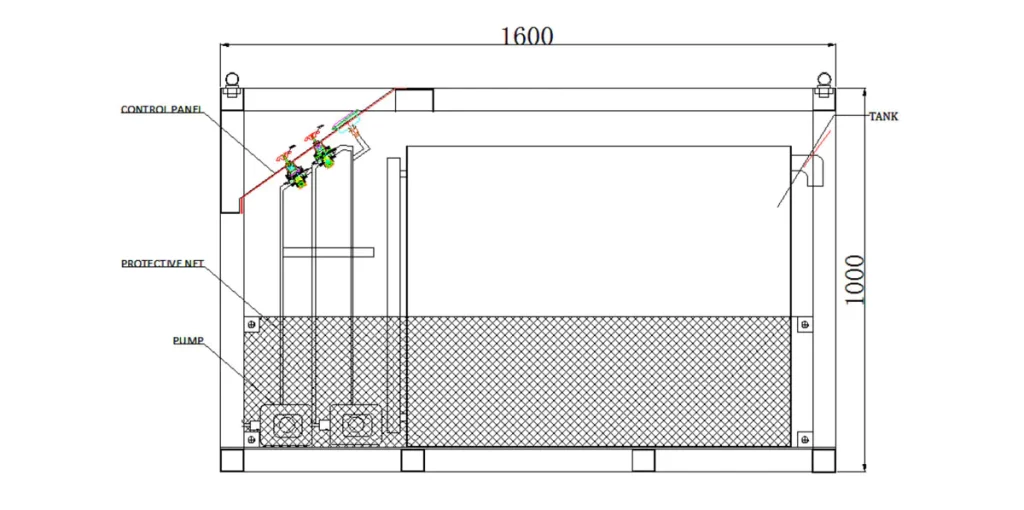

Model: WY-700W-J2
Model: WY-700W-J2
| Test medium | Clear water |
| Max. output pressure of low pressure pump | 100 bar / 10Mpa |
| Max. output pressure of high pressure pump | 600 bar / 60Mpa |
| Max. air pressure | 10 bar / 1Mpa |
Connection
| Drive air inlet | G1/2 |
| High pressure outlet 1 | G1/2 |
| High pressure outlet 2 | G1/4-60° |
| Power interface | 220V two-wire system |
| Data line interface | USB2.0 |
Construction
| Panel | Stainless steel |
| Water tank | Stainless steel |
| Pressure gauge | Stainless steel |
| Valve | Stainless steel |
| Tube | Stainless steel |
| Connector | Stainless steel |
| Hydraulic cylinder | Anodized aluminium |
| Piston | Stainless steel |
| Pump head | Stainless steel |
| Frame | Carbon steel |
Low Pressure Pump – Hydraulic Pressure Static Conditions (@7bar)
| Air pressure (bar) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Hydraulic pressure (bar) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 |
| Output flow rate (L/min) | 35 | 30 | 26 | 24 | 20 | 19 | 18 | 17 |
High Pressure Pump – Hydraulic Pressure Static Conditions (@7bar)
| Air pressure (bar) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Hydraulic pressure (bar) | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
| Output flow rate (L/min) | 3.6 | 3.5 | 3.3 | 3.1 | 3 | 2.95 | 2.9 | 2.87 |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
