Paper Chart Recorder Unit Portable Hydrostatic Test Pump
- Model: XWGJ-100

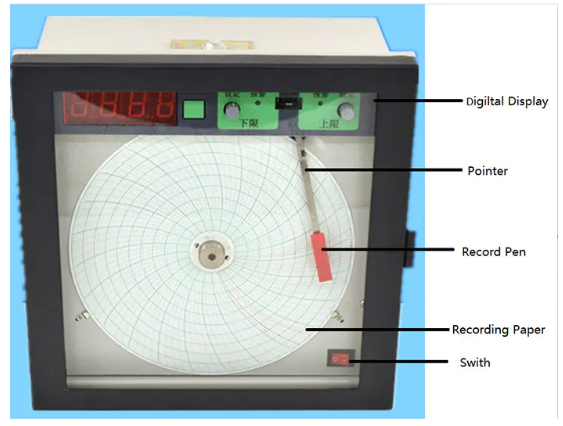

- Equipped with a high-precision chart drive, the unit ensures accurate and consistent chart advancement, allowing for precise data analysis and trending. The pen assembly features a durable, long-life writing element that produces clear, consistent traces on the recording paper.
Share to
Overview
The medium-circle automatic balance recorder is equipped with a certain transmitter for automatic measurement, indication and recording of the measured parameters, which can be widely used in the industries of textile, food, environmental protection, chemical, mining, metallurgy, petroleum, power generation, etc.
Features
- The structure is simple, the performance is stable and reliable, and it is easy to maintain.
- The effective arc of the meter is 550mm in length and is equipped with a display pointer. The reading is clear and convenient.
- The recording paper runs at a constant speed and is changed once a day, which is beneficial to the responsibility of the handover in daily production.
Model: XWGJ-100
| Ambient temperature | 0 to 50°C |
| Relative temperature | 30% to 85% |
| Working power supply | AC220V 50Hz |
| Display error | ±0.5% |
| Recording error | ±1% |
| Insensitive area | 0.25% |
| Scale full length | 550mm |
| Effective length of the mark on the recording paper | 87.5mm |
| Full travel time | ≤5s |
| Potentiometer | ≤1KΩ |
| Balanced bridge | ≤1.5KΩ |
| Recording paper feed speed | 24 hours / week |
| Power consumption | About 40W |
| Weight | <14kg |
| Given error | ±1% |
| Dimensions | 420*415*350 mm |
Construction
| Body | Carbon steel |
| Surface | ABS |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
