Overview
The body material for the line filter is 316 stainless steel, and Material: 316. And the filter uses strained stainless steel, quick replacement of the filter can be realized.

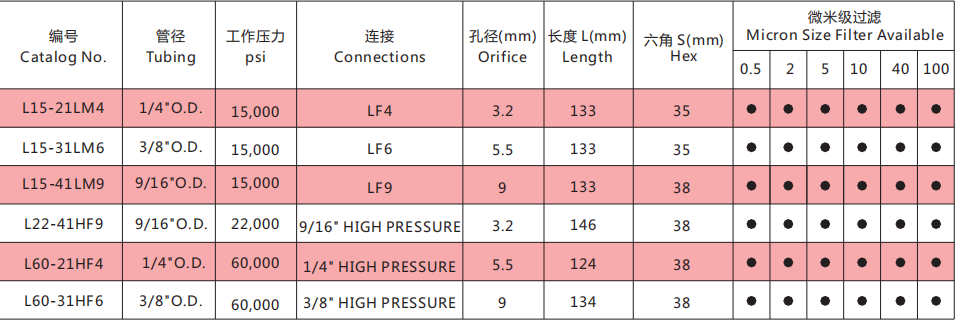

Parameter
| Catalog No. | Tubing O.D. | Working pressure (psi) | Connection | Orifice (mm) | Length (mm) | Hex (mm) | Micron size filter available | |||||
| 0.5 | 2 | 5 | 10 | 40 | 100 | |||||||
| L15-21LM4 | 1/4″ | 15,000 | LF4 | 3.2 | 133 | 35 | · | · | · | · | · | · |
| L15-31LM6 | 3/8″ | 15,000 | LF6 | 5.5 | 133 | 35 | · | · | · | · | · | · |
| L15-41LM9 | 9/16″ | 15,000 | LF9 | 9 | 133 | 38 | · | · | · | · | · | · |
| L22-41HF9 | 9/16″ | 22,000 | 9/16″ HIGH PRESSURE | 3.2 | 146 | 38 | · | · | · | · | · | · |
| L60-21HF4 | 1/4″ | 60,000 | 1/4″ HIGH PRESSURE | 5.5 | 124 | 38 | · | · | · | · | · | · |
| L60-31HF6 | 3/8″ | 60,000 | 3/8″ HIGH PRESSURE | 9 | 134 | 38 | · | · | · | · | · | · |

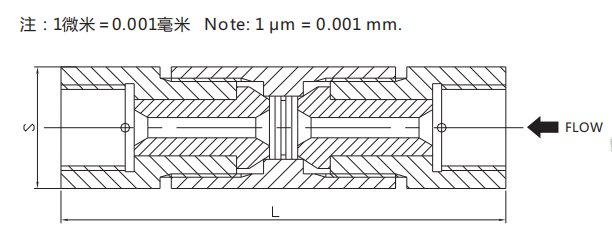

Structure
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
