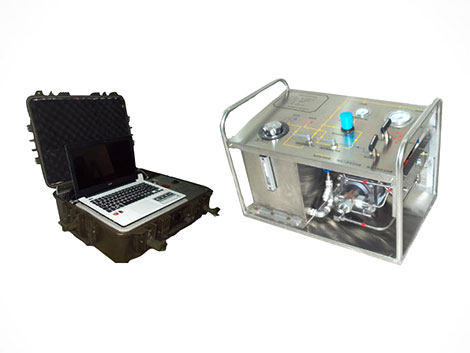

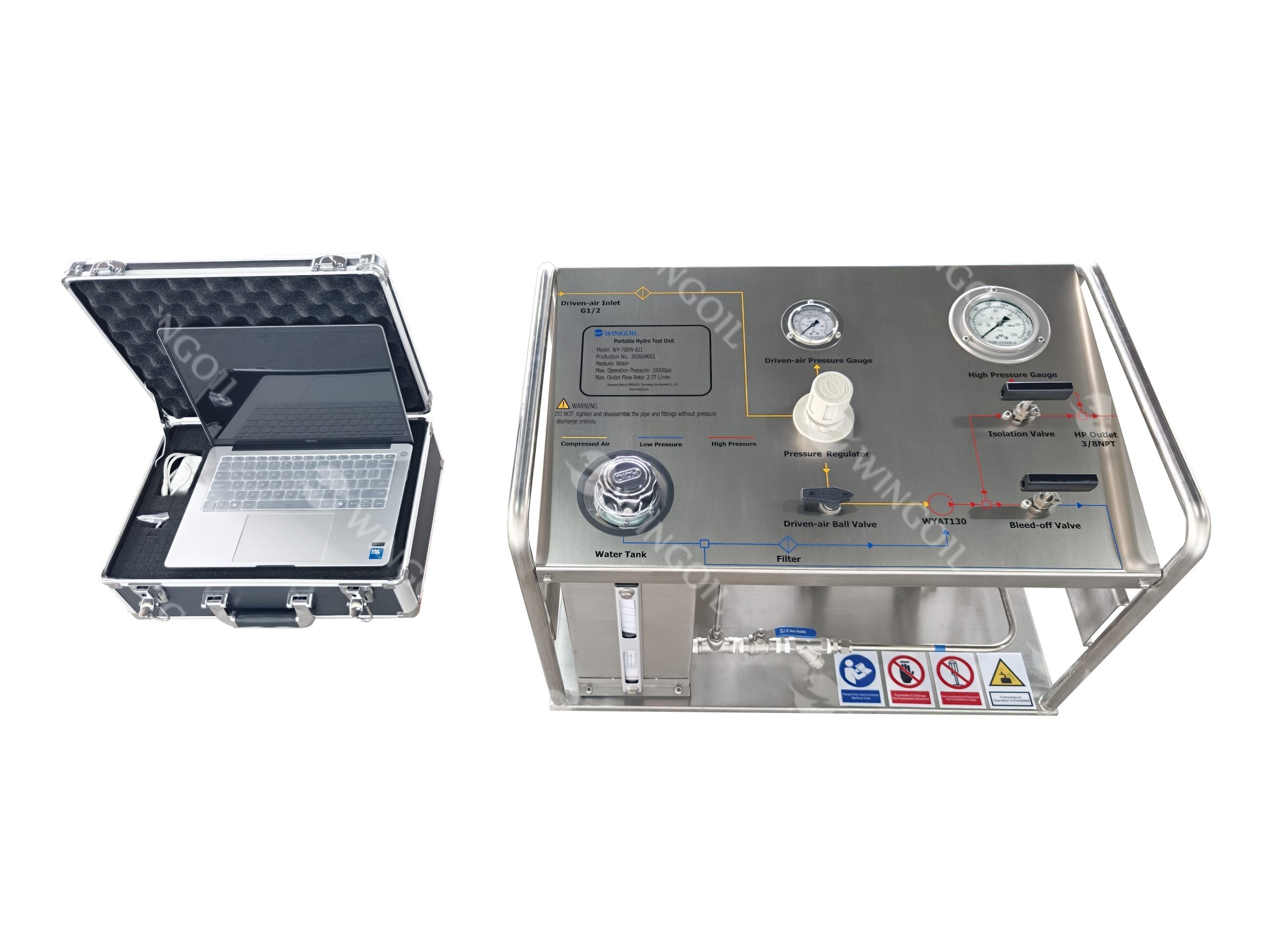

Hydro Test Pump with Data Acquisition System
  • Hydro Test Pump with Data Acquisition System

    • Hydro Test Pump with Data Acquisition System

    • Model: WY-700W-BJ1
    • This integrated system enables real-time monitoring and recording of test data, including pressure, flow rate, and temperature, ensuring accurate and reliable results.

    Share to

    Overview

    The multi-functional well control and pressure test system is used for tool downhole and ground pressure test. The equipment uses compressed air as the power source for rapid pressure detection, and has data display and electronic record requirements.

    Features

    • Low cost servicing.
    • No heat, flame or risk of spark.
    • Designed for ease of maintenance.
    • Well proven and trouble-free operation.
    • Compact, robust, self-contained structure.
    • Infinitely variable output pressure and flow rate.
    • Remote observation and record of the flow curve.
    • Holds static pressure without generating heat or consuming power.
    • Low-pressure compressed air as the booster power source, safe and environmentally friendly.
    • The outlet pressure reaches the set pressure, the equipment is automatically shut down, and the use is safe.

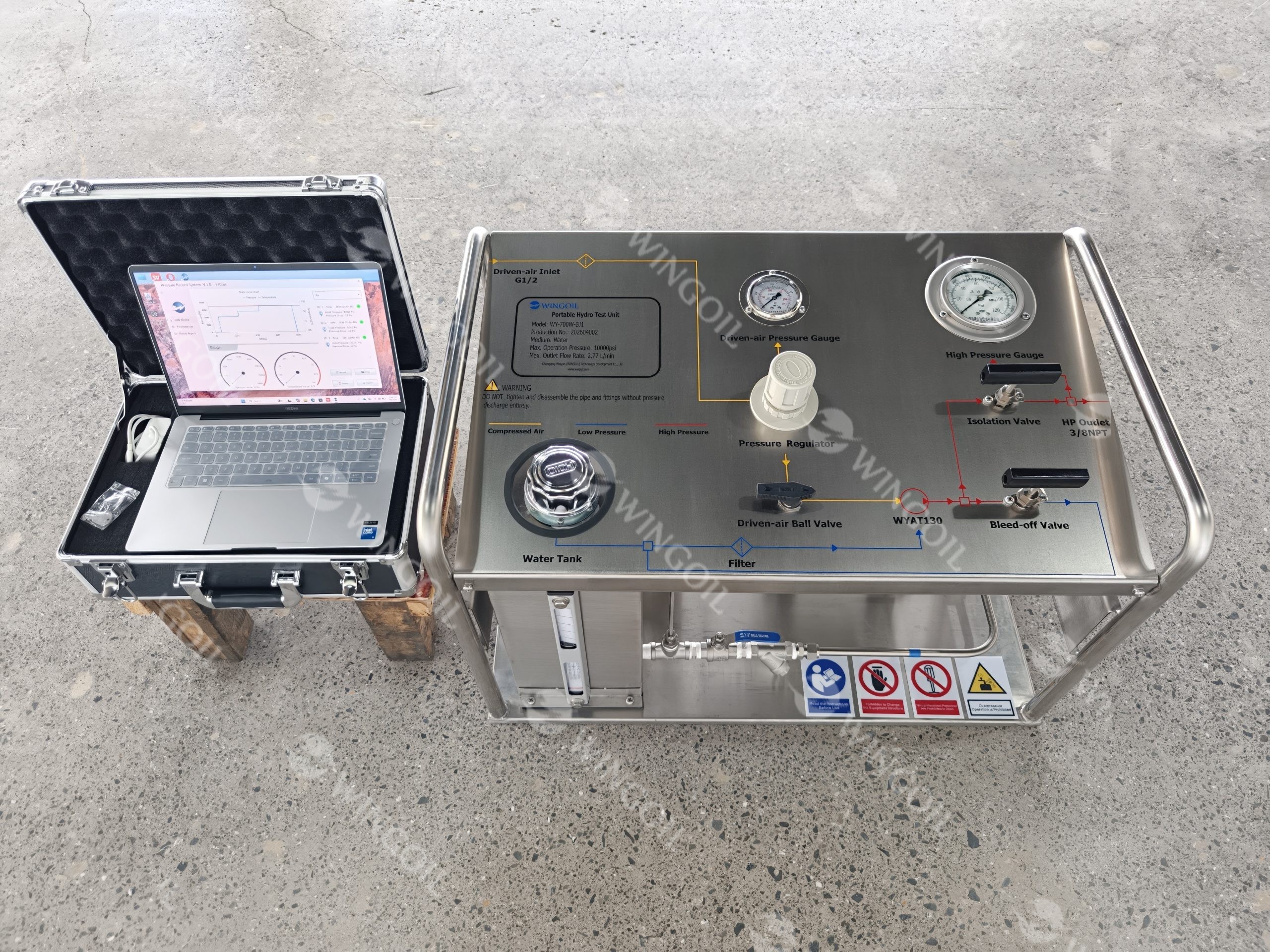

    Model: WY-700W-BJ1

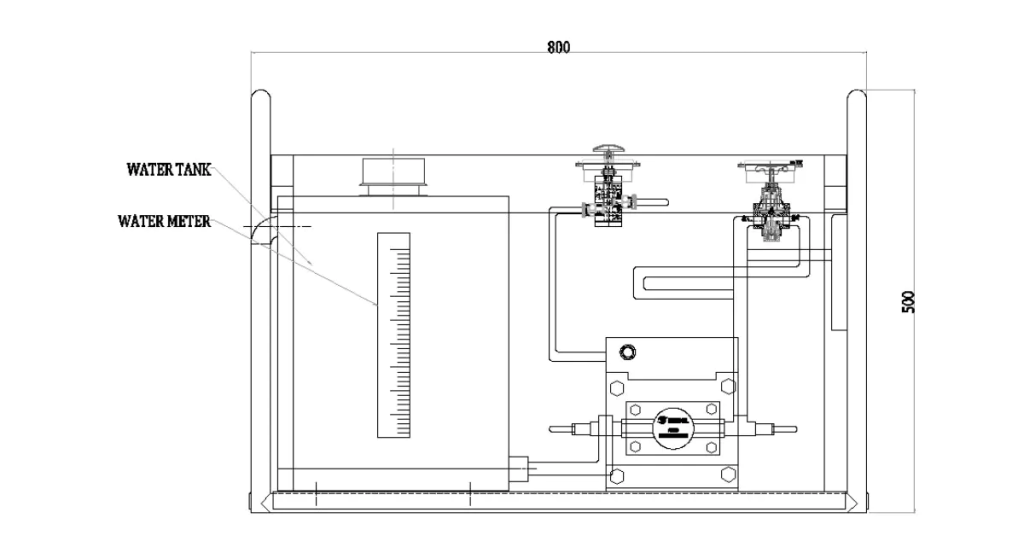

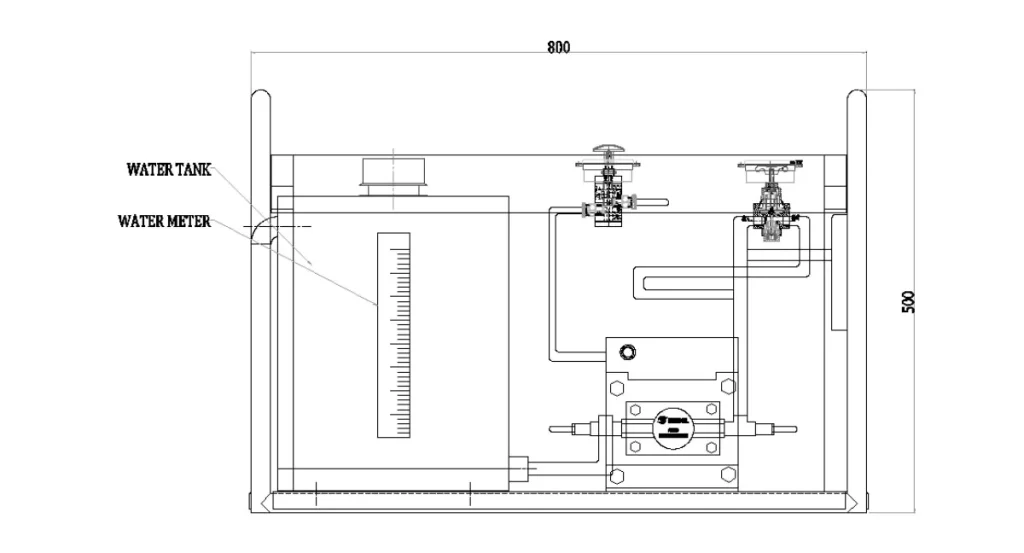

    General Layout Drawing of Hydro Test Pump with Data Acquisition System

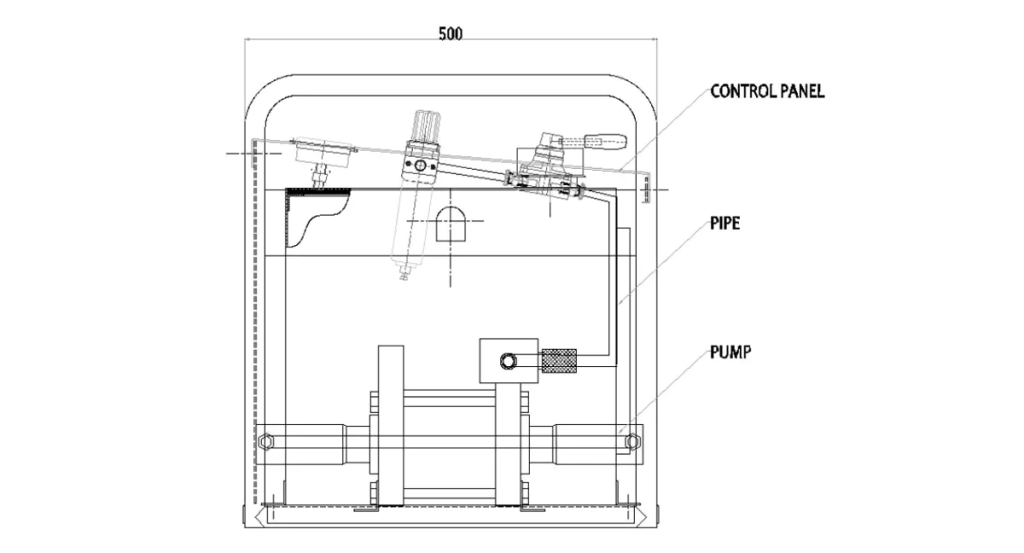

    General Layout Drawing 2 of Hydro Test Pump with Data Acquisition System

    Model: WY-700W-BJ1

    with Data Acquisition System

    Boost ratio1:100
    MediumClean water, hydraulic oil
    Max. output pressure700 bar / 10,000 psi
    Max. flow rate200L/H @7bar
    Max. air supply10 bar / 145 psi
    Max. air pressure1000L/Min@7bar
    Tank capacity20L
    Dimension800*500*500mm
    Hose length10 meters
    Hose pressure1000 bar / 14500 psi
    Caster size8 inch
    Data logger chassis size617*469*291mm
    Power supply220AC 50Hz
    Input power24DC
    Output signal4-20Ma
    LanguageChinese / English

    Connection

    Air inlet1/2FNPT
    High pressureG1/4M-60°
    Water inletDN15
    Drainage1/2FNPT
    HoseG1/4F-60°

    Construction

    Frame and panelStainless steel
    Pressure gaugeStainless steel
    ValveStainless steel
    TubeStainless steel
    ConnectorStainless steel
    Hydraulic cylinderAnodized aluminium
    PistonStainless steel
    Pump headStainless steel
    TankStainless steel
    Data Acquisition BoxPP alloy

    Hydraulic Pressure Static Conditions (@7bar)

    Air pressure (bar)01234567
    Hydraulic pressure (bar)0100200300400500600700
    Output flow rate (L/min)3.52.51.81.51.21.00.90.2

    ————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
