Application

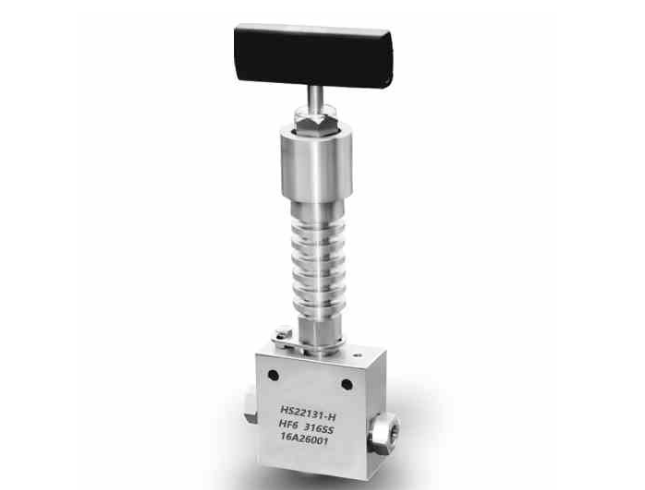

High-temperature valve is mainly used for the control of the steam system, nuclear power, power plant, boiler, thermal power, high-temperature medium, etc. The working conditions of cryogenic valves are harsh, and most of their working media are flammable, explosive, and permeable substances. Therefore, the design, manufacture, and inspection of cryogenic valves are very different from those of general valves.

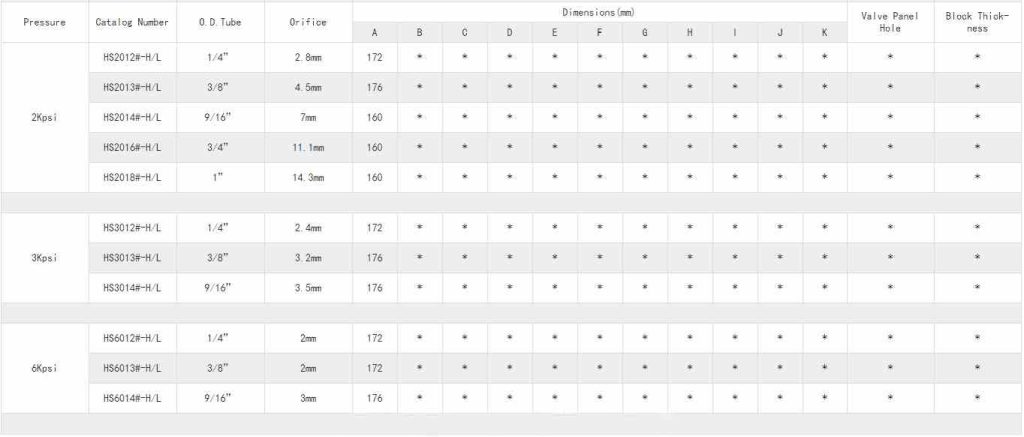

Parameter
| Pressure | Catalog No. | Tube 0.D. | Orifice (mm) | Dimensions (mm) | Valve Panel Hole | Block Thickness | ||||||||||
| A | B | C | D | E | F | G | H | I | J | K | ||||||
| 2Kpsi | HS2012#-H/L | 1/4″ | 2.8 | 172 | * | * | * | * | * | * | * | * | * | * | * | * |
| HS2013#-H/L | 3/8″ | 4.5 | 176 | * | * | * | * | * | * | * | * | * | * | * | * | |
| HS2014#-H/L | 9/16″ | 7 | 160 | * | * | * | * | * | * | * | * | * | * | * | * | |
| HS2016#-H/L | 3/4″ | 11.1 | 160 | * | * | * | * | * | * | * | * | * | * | * | * | |
| HS2018#-H/L | 1″ | 14.3 | 160 | * | * | * | * | * | * | * | * | * | * | * | * | |
| 3Kpsi | HS3012#-H/L | 1/4″ | 2.4 | 172 | * | * | * | * | * | * | * | * | * | * | * | * |
| HS3013#-H/L | 3/8″ | 3.2 | 176 | * | * | * | * | * | * | * | * | * | * | * | * | |
| HS3014#-H/L | 9/16″ | 3.5 | 176 | * | * | * | * | * | * | * | * | * | * | * | * | |
| 6Kpsi | HS6012#-H/L | 1/4″ | 2 | 172 | * | * | * | * | * | * | * | * | * | * | * | * |
| HS6013#-H/L | 3/8″ | 2 | 172 | * | * | * | * | * | * | * | * | * | * | * | * | |
| HS6014#-H/L | 9/16″ | 3 | 176 | * | * | * | * | * | * | * | * | * | * | * | * | |
Structure
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
