Overview

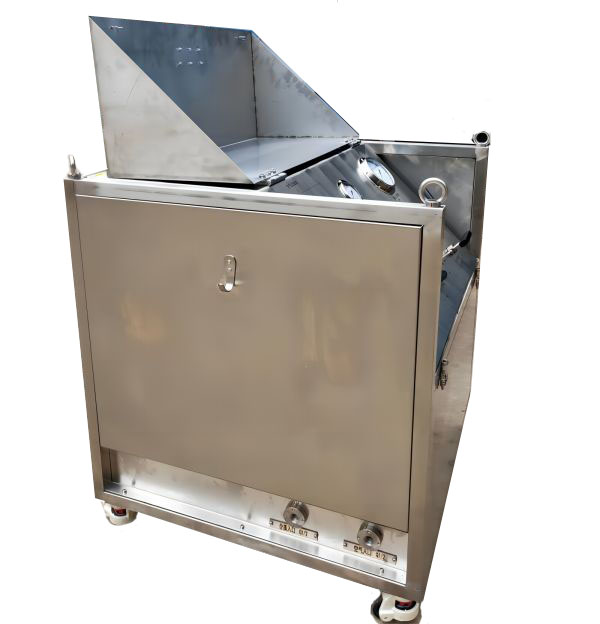

CH-1500CH-J0 chemical injection skid is mainly used for the injection of chemical reagents such as methanol and ethylene glycol, and can also be used for pressure testing of clean water. The maximum output pressure of the equipment design can reach 150mpa.
Feature
- The maximum design pressure is 150MPa.
- This set of equipment is suitable for liquid boosting, and the boosting pressure can be adjusted freely.
- The equipment can only use inert gases such as air, nitrogen and helium as the driving source, and other gas media, especially flammable and explosive gases, are not allowed.
Model: CH-1500CH-J0
| Air-driven liquid pump model | WY2AT200 |
| Pressure ratio | 1:200 |
| Max. flow rate | 3.62L/min |
| Pressurized medium | Methanol, ethylene glycol, water, etc. |
| Driving air supply requirements | Pressure 7 to 8.3 bar |
| Flow rate | 1.6m³/min |
| Max. pressure at pump outlet | 1500 bar / 150 MPa (The maximum pressure is 146.2MPa when the rupture disc is installed) |
| Bursting disc pressure range | 133.8MPa-146.2MPa |
| Max. working temperature | 55°C |
| High-pressure pipeline | Rated pressure 30000psi |
| Driving air pipeline | Pressure 10bar, model DN8*20m |
| Chemical storage tank | 30L |
Note: If you need to inject other media, please confirm with our company.
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
