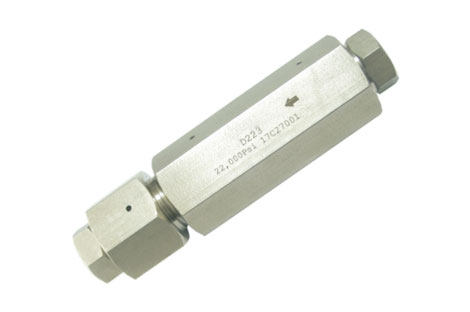

Ball Check Valve
- The body is made of stainless steel 316L, using the ball sealing, high and low pressure sealing performance is good.
- It provides directional flow control and tight closure for high-quality liquids and gases. All check valves are equipped with check valve covers and rings, and check valves do not have absolute pressure holding function.
Share to
Parameter
| Pressure | 15,000psi | 22,000psi | 40,000psi | 60,000psi | ||||
| OD | Part No. | Tubing ID (mm) | Part No. | Tubing ID (mm) | Part No. | Tubing ID (mm) | Part No. | Tubing ID (mm) |
| 1/4″ | D152 | Φ3 | D222 | Φ3 | D402 | Φ3 | D602 | Φ2 |
| 3/8″ | D153 | Φ6 | D223 | Φ6 | D403 | Φ5 | D603 | Φ4 |
| 1/2″ | D156 | Φ10 | D226 | Φ10 | D406 | Φ8 | D606 | Φ6 |
| 1″ | D158 | Φ20 | D228 | Φ15 | D408 | Φ12 | D608 | Φ10 |
| Pressure | 15,000psi | 22,000psi | 40,000psi | 60,000psi | ||||
| OD | Part No. | Tubing ID (mm) | Part No. | Tubing ID (mm) | Part No. | Tubing ID (mm) | Part No. | Tubing ID (mm) |
| 1/4″ | D152 | Φ3 | D222 | Φ2 | D402 | Φ2 | D602 | Φ1.6 |
| 3/8″ | D153 | Φ6 | D223 | Φ5 | D403 | Φ4 | D603 | Φ3 |
| 1/2″ | D156 | Φ10 | D226 | Φ8 | D406 | Φ6 | D606 | Φ5 |

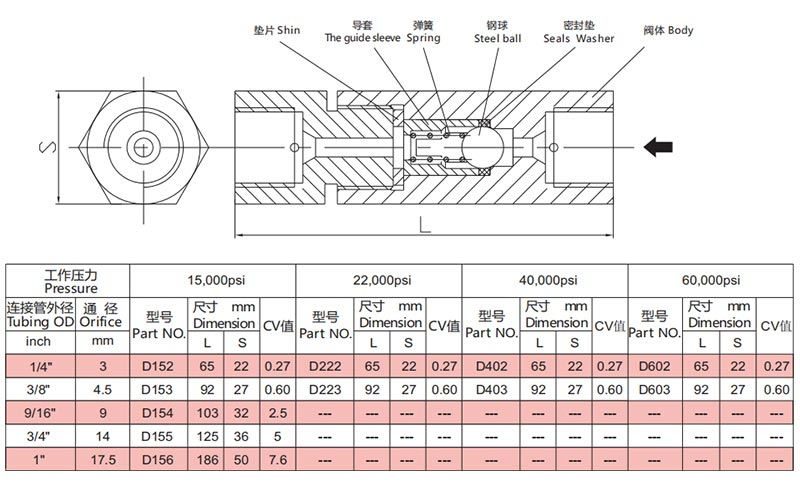

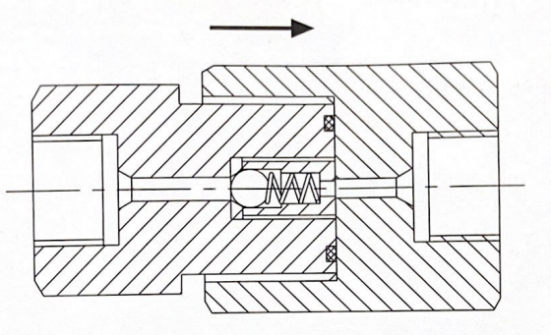

Ball Check Valves
- Stable opening pressure.
- Metal seal is able to use by any fluids.
- The material of valve body is 316L stainless steel.

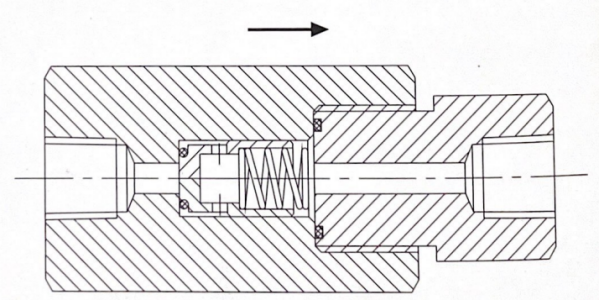

Soft Seat Check Valves
- Opening pressure stable.
- The use of 316L stainless steel.
- A more reasonable design, convenient replacement of O ring.
- Good sealing performance, high and low voltage (especially suitable for gas).
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
