Acid Injection Package
- Model: WY-50/360C-T
- This unit helps to increase production, reduce corrosion and to improve the process.
- The Acid Injection Package serves the purpose of injecting a precise and accurate amount of acid medium into a system with the required back pressure, either continuously or intermittently.
Share to
Overview

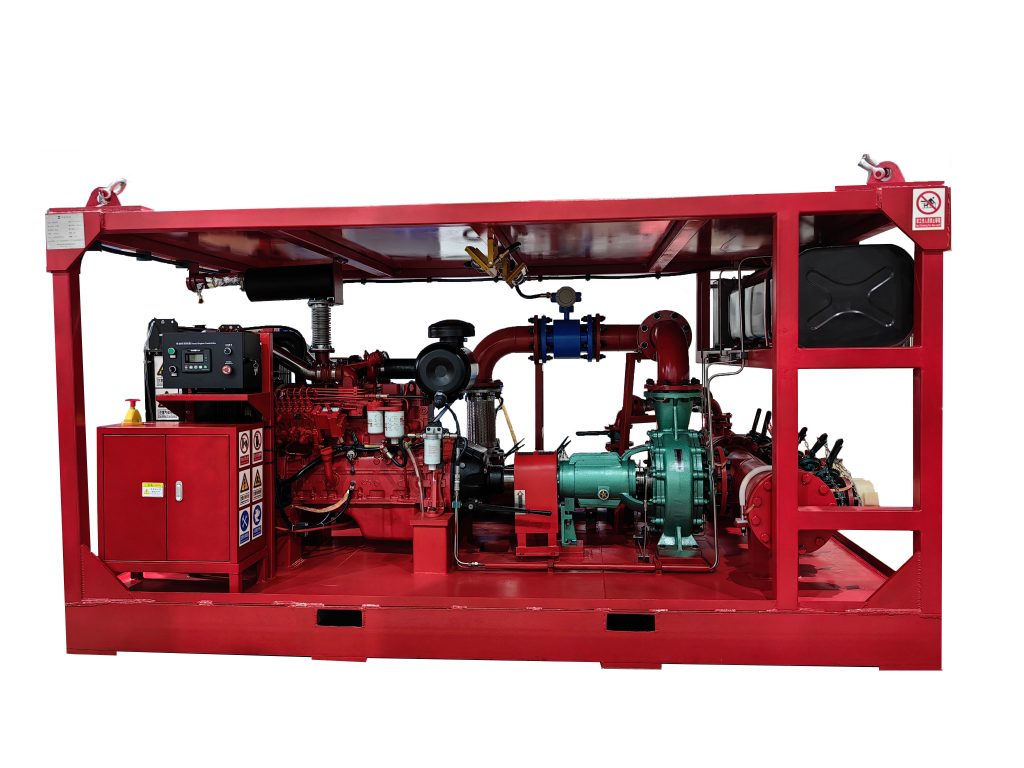

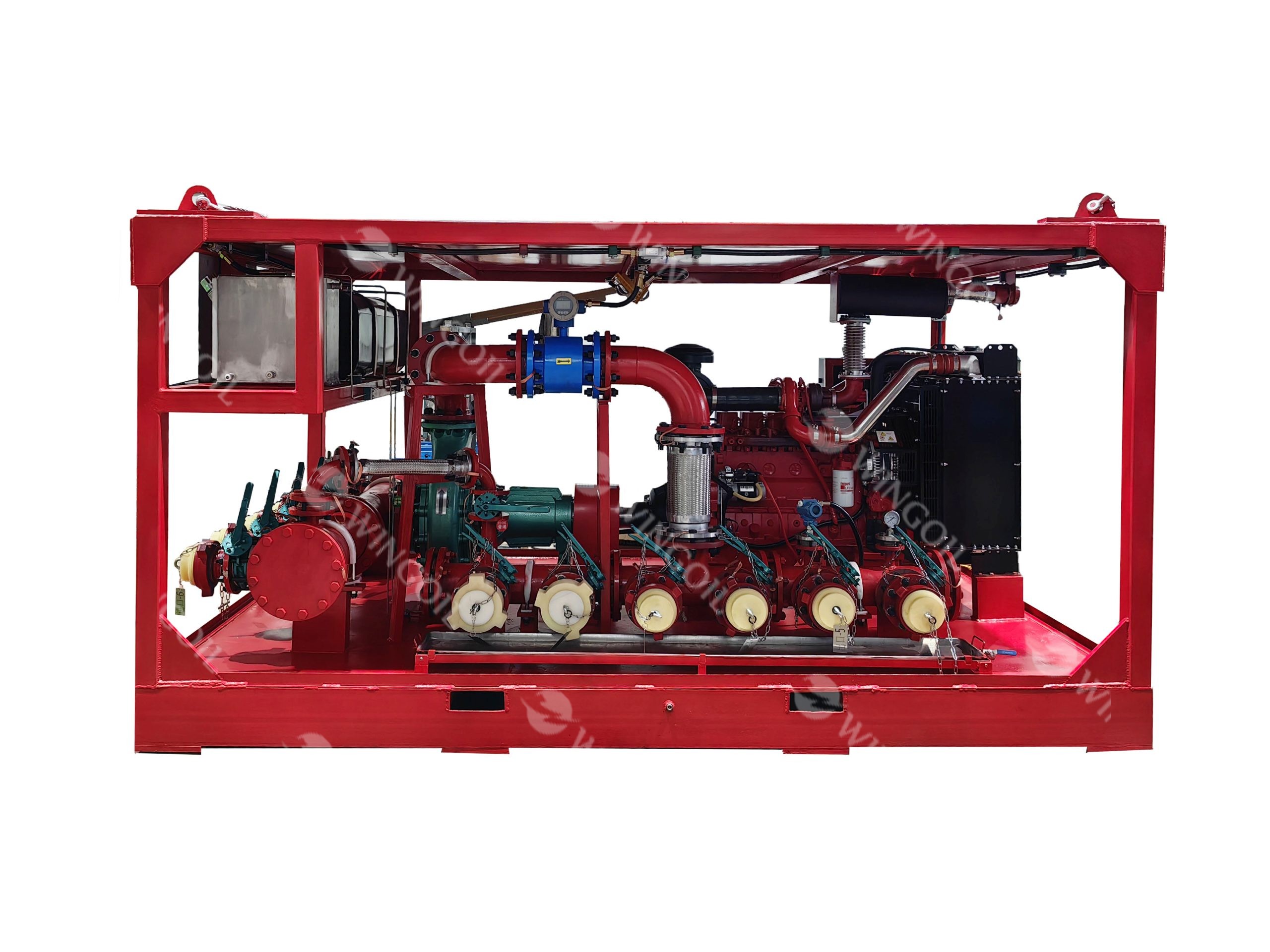

Acid Injection Package is a piece of equipment designed to inject acid medium into a system at the required pressure for the system. The skid structure provides the structure itself for the system and is designed in such a way to protect the system while accommodating its various parts.
Advantages
- More cost effective
- More space efficient
- Feature greater safety
- Provides greater quality assurance
- Can be fabricated and installed quickly
- Easy identification in asset management
- Constructed in more controlled environments
Model: WY-50/360C-T
Model: WY-50/360C-T
| Medium | Acid |
| Dimension | 3550L*2250W*1950H |
| Weight | 3.2 T |
| Ambient temperature | -10 to 40 ℃ |
| Maximum power consumption | 120 KW |
| Maximum oil consumption | 5.9 L |
| Fuel type | Diesel |
| Oil tank volume | 200 L |
| Output volume | Greater than or equal to 360m³/h |
————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
